To attach a concrete table top to a wood base, use metal Z-clips, figure-8 fasteners, or construction adhesive combined with a support frame. These methods allow the wood to expand and contract while keeping the heavy top secure. Always confirm your base can bear the weight before mounting.
Concrete table tops have become a favorite for homeowners who want an industrial, modern look that lasts for decades. But that beauty comes with weight—a single slab can tip the scales at 100 pounds or more. Pairing it with a wood base gives you warmth and character, yet joining the two materials safely takes a bit of planning.
The tricky part is movement. Wood expands and contracts with humidity, while concrete stays rigid. If you bolt the slab down too tightly, you risk cracks over time. Get the connection right, and your table will stay solid through years of daily use.
This guide walks through the fasteners, base options, and step-by-step methods that make a lasting bond between stone and timber.
Concrete and wood behave very differently. According to the U.S. Forest Products Laboratory, wood can shrink or swell up to 8% across its grain as moisture levels shift through the seasons. Concrete, on the other hand, barely moves at all. A rigid connection fights this natural movement and can lead to splitting or a wobbly table.
The goal is a "floating" attachment—one that holds the top firmly in place while letting the wood breathe. This is the same principle furniture makers use for solid-wood tabletops, and it works just as well for heavy slabs.
Several proven fasteners can handle the load, but the best choice often depends on your table base types, as each has strengths depending on your base design and skill level.
Fastener Type | Best For | Allows Wood Movement | Skill Level |
|---|---|---|---|
Z-clips (tabletop clips) | Bases with an apron or side rail | Yes | Beginner |
Figure-8 fasteners | Bases with a flat top edge | Yes | Beginner |
Construction adhesive | Full-contact frames | No | Beginner |
Threaded inserts + bolts | Heavy slabs needing max strength | Limited | Intermediate |
Metal support brackets | Wide or unsupported spans | Yes | Intermediate |
Z-clips slide into a small groove cut in the wood apron, then screw into the underside of the top. Figure-8 fasteners rotate slightly to absorb movement. For the heaviest slabs, threaded inserts embedded in the concrete give you a bolt-ready anchor point that won't pull loose.
A concrete slab is unforgiving of a weak foundation. Before you attach anything, inspect the base for stability and load capacity.
There are many diy table bases you can build or repurpose, from reclaimed timber trestles to simple four-leg frames. Whatever you choose, add corner blocks and a center support rail for slabs wider than 36 inches. This spreads the load and prevents sagging in the middle.
If you're buying rather than building, look for solid hardwoods like oak, maple, or walnut. These species resist warping under sustained weight far better than softwoods such as pine.

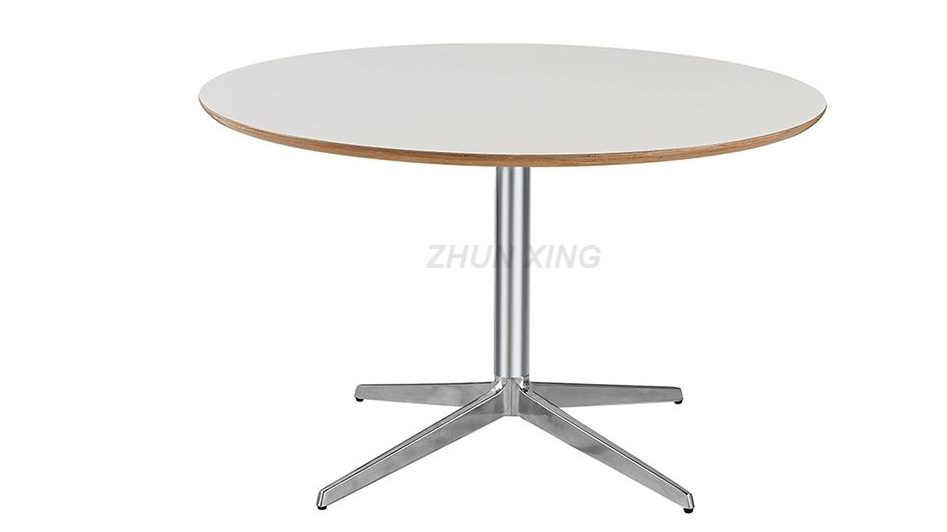

Understanding the different table base types helps you match the right support to your slab. Pedestal bases concentrate weight on a single point, so they need a wide footprint for stability. Trestle bases distribute weight across two ends, making them ideal for long rectangular tops. Four-leg frames offer the most predictable support and are the easiest for beginners to fasten.
A chrome dining table base deserves special attention here. Its sleek metal finish pairs beautifully with raw concrete, but metal bases usually require pre-drilled mounting plates or welded tabs rather than the wood-specific clips described above. Check that your metal frame has flat attachment points before committing to a concrete top.
Follow these steps for a secure, long-lasting bond.
Place the concrete top on the base and check that it sits flat with no rocking. Center it carefully and mark the outline with painter's tape.
Space Z-clips or figure-8 fasteners every 12 to 16 inches around the perimeter. For a 60-inch table, plan on at least eight to ten connection points.
For Z-clips, cut a shallow kerf in the apron with a biscuit joiner or table saw. For figure-8 fasteners, drill a shallow recess so they sit flush.
Screw the fasteners into the wood base first. Then attach them to the concrete using masonry screws or pre-set threaded inserts.
For extra grip on smaller tops, run a bead of polyurethane construction adhesive along the top edge of the base. Skip this on large slabs where movement is a bigger concern.
Give any adhesive a full 24 hours to set before using the table. Avoid placing heavy objects on it during this window.
Moving a concrete top is a two-person job at minimum. Lift with your legs, and use furniture straps for slabs over 100 pounds. Felt or rubber pads between the concrete and wood reduce direct friction and protect both surfaces. Finally, seal your concrete top with a food-safe sealer to prevent staining and moisture transfer into the wood below.
A concrete top and a wood base make a striking, durable pairing when joined the right way. Start by matching your slab to a base built for the load, then pick fasteners that let the wood move naturally. Whether you go with clips, fasteners, or a hybrid of both, patience during assembly pays off in a table that stays rock-solid for years. Ready to build? Gather your hardware, recruit a helper, and take it one step at a time—your finished piece will be worth the care.
Yes. If the top is bolted down too rigidly, seasonal wood movement can put stress on the slab and cause hairline cracks. Using floating fasteners like Z-clips prevents this by letting the wood expand and contract freely.
A well-built hardwood base with corner blocks and a center rail can easily support 100 to 200 pounds. Always confirm your specific design's load rating before mounting a heavy concrete slab.
Sealing is highly recommended. A food-safe sealer keeps moisture from wicking into the wood base and protects the concrete from stains, extending the life of both materials.
Figure-8 fasteners are the most beginner-friendly option. They install with basic tools, allow for wood movement, and don't require precise groove cutting like some other methods.
