Changing the base of your office chair is a straightforward fix that can save you from buying a brand-new chair. Whether the legs are cracked, the casters keep breaking, or your chair no longer rolls smoothly, replacing the base takes about 10–15 minutes and costs far less than a full replacement.
This guide walks you through everything you need to know—from identifying your chair type to choosing the right replacement base and completing the swap safely.
Before diving in, gather the following:
A rubber mallet or hammer
A flathead screwdriver
A pipe wrench (optional, but helpful)
A replacement base compatible with your chair model

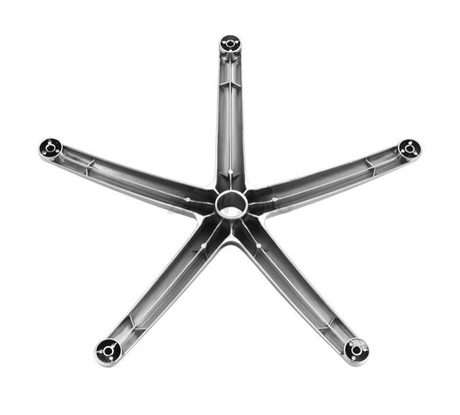

Most office chair bases share a standard 5-star configuration with a center gas lift cylinder. That said, the replacement process varies depending on the type of chair you own.

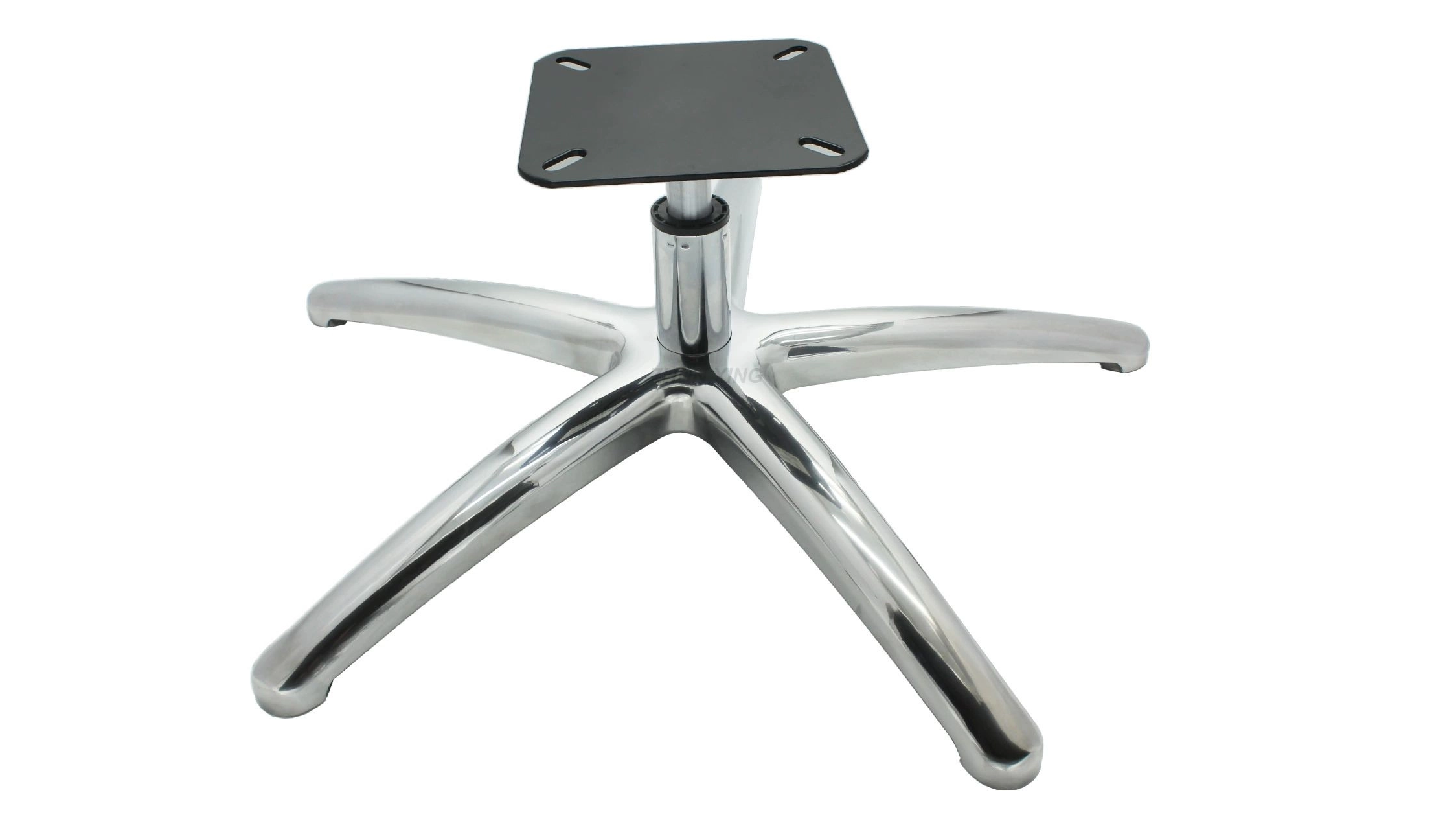

A swivel chair base is the most common type found in home and office settings. It typically features five legs with casters and a central hub that connects to the gas lift cylinder.
Step 1: Flip the chair upside down on a flat, stable surface. Place it on a mat or carpet to avoid scratching the seat.
Step 2: Remove the casters by pulling them firmly from each leg socket. Most pop out with steady hand pressure, though a flathead screwdriver can help pry stubborn ones loose.
Step 3: Locate the gas lift cylinder where it connects to the base hub. This joint can be tight. Place the chair on its side, hold the cylinder firmly, and strike the base hub downward with a rubber mallet. Several firm strikes should release it.
Step 4: Once separated, slide your new swivel chair base onto the gas lift cylinder. Press it firmly until it clicks into place.
Step 5: Reinsert the casters into the new base legs, and flip the chair upright. Test the rotation and rolling function before use.
Tip: Always verify that your replacement base has the same center bore diameter as your original. Standard sizes are typically 50mm–52mm.
A pedestal chair base differs from the five-star design. It uses a single central column or a weighted disc-style platform. These are common on drafting chairs, salon stools, and classic task seating.
Step 1: Tip the chair carefully to expose the base connection point.
Step 2: On most pedestal designs, the column threads into the seat plate or clips via a tension ring. Use a pipe wrench to grip the column and rotate counterclockwise to loosen it.
Step 3: If a retaining clip is used instead of threading, insert a flathead screwdriver into the clip gap and lever it outward while pulling the column free.
Step 4: Attach the new pedestal chair base by threading it clockwise or snapping the retaining clip back into position.
Step 5: Set the chair upright and check for wobble. A well-fitted pedestal chair base should sit flush with no side-to-side movement.
Tip: Pedestal bases vary more widely in design than five-star bases. Bring your old base—or its measurements—when sourcing a replacement to ensure compatibility.
Gaming chairs are generally bulkier and heavier than standard office chairs, and the base for gaming chair models is built accordingly. Thicker legs, larger casters, and higher weight ratings are standard features. The replacement process is similar to the swivel variety but requires extra care due to the chair's weight.
Step 1: Remove the chair's seat cushion or detach the backrest if the chair is too heavy to flip safely as a single unit.
Step 2: With the chair inverted, pull out the casters and expose the gas cylinder connection point.
Step 3: Grip the cylinder firmly using a pipe wrench or cloth for leverage. Strike the existing base downward with a rubber mallet until it releases.
Step 4: Fit the new base for gaming chair by pressing it firmly onto the gas cylinder shaft. Many gaming chair bases require a few extra strikes to seat properly due to the tighter manufacturing tolerances.
Step 5: Replace casters, reassemble the chair, and test it under full weight before regular use.
Tip: For gaming chairs rated above 250 lbs, verify that your replacement base carries a matching or higher weight rating. Undersized bases can crack under repeated stress.
Feature | Swivel Chair Base | Pedestal Chair Base | Base for Gaming Chair |
|---|---|---|---|
Leg configuration | 5-star | Single column/disc | 5-star (reinforced) |
Common use | Office, home desk | Drafting, salon, bar | Gaming, heavy-duty use |
Removal method | Mallet + pull | Thread or clip | Mallet + wrench |
Replacement difficulty | Easy | Moderate | Moderate |
Standard bore size | 50–52mm | Varies | 50–52mm |
Weight capacity | Standard | Varies | High |
Even simple repairs can go wrong without the right approach. Watch out for these:
Forcing the wrong size base: An ill-fitting bore creates instability and risks injury. Always measure first.
Skipping the caster check: New bases often come without casters, or with lower-quality ones. Upgrade if necessary.
Ignoring weight ratings: This is especially relevant for the base for gaming chair category, where heavy chairs demand heavy-duty components.
Not testing before sitting: Always apply gradual pressure before fully trusting a newly installed base.
Replacement bases are available from office furniture suppliers, hardware stores, and specialist manufacturers. For high-quality, durable chair base hardware compatible with a wide range of chair types, www.zhunxinghardware.com offers a reliable selection worth exploring.
When ordering, note the following specs:
Center bore diameter (mm)
Leg span (measured tip to tip)
Material (nylon, aluminum, or steel)
Caster compatibility
A worn or broken base doesn't mean the chair is finished. With the right replacement part and about 15 minutes of effort, you can restore full function and extend the life of your seating significantly. The process is consistent across most chair types—loosen, detach, replace, and test. Matching your base type to the correct replacement is the most critical step, whether you're working with a swivel chair base, a pedestal chair base, or a base for gaming chair. Confirming bore size, leg span, and weight rating before purchasing ensures a smooth, lasting fix.
Are all office chair bases interchangeable?
Most standard office chairs use a 5-star base with a 50–52mm center bore, making many bases interchangeable. However, pedestal and specialty designs vary significantly. Always confirm measurements before ordering a replacement.
Can replacing a chair base fix a sinking seat?
Not always. A sinking seat is usually caused by a faulty gas cylinder, not the base. If the base itself is structurally sound but the seat sinks, replace the cylinder instead.
Do I need special tools to change an office chair base?
A rubber mallet and a flathead screwdriver handle most replacements. A pipe wrench is useful for stubborn cylinders or threaded pedestal designs, but it isn't always necessary.
How long does it take to replace an office chair base?
Most replacements take between 10 and 20 minutes, depending on how tightly the original base is fitted and the chair type involved.
Is a steel or nylon base better for everyday use?
Steel bases offer greater durability and higher weight capacity. Nylon bases are lighter and less expensive, making them suitable for standard everyday use. Choose based on the chair's expected load and frequency of movement.
