A wobbly table is more than an annoyance—it's a sign that the connection between the top and base isn't doing its job. Whether you're assembling a new dining table from separate components or replacing a worn base, getting this attachment right determines how the table performs for years to come.
The dining table base carries all the structural load. If it's poorly matched to the top, or if the fasteners don't account for material expansion, the result is a table that creaks, cracks, or shifts underfoot. This guide covers everything from choosing the right dining table base to sourcing from a reliable China table base supplier—plus a step-by-step breakdown of the attachment process itself.
The dining table base isn't just a support structure—it determines the entire character of the finished table. Pedestal bases, four-leg bases, and trestle bases each attach to a top differently, and each suits a different range of top dimensions and materials.
Here's a quick overview of the most common base types and their recommended top sizes:
Base Style | Best For | Recommended Top Width | Typical Material |
|---|---|---|---|

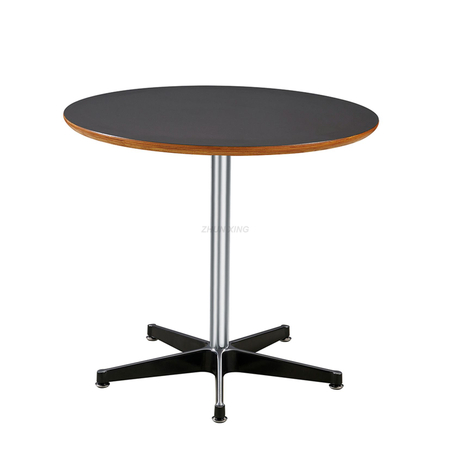

Pedestal (single column) | Round & square tops | Up to 48 inches | Cast iron, steel |
Four-leg frame | Rectangular tops | 60–96 inches | Steel, aluminum |
Trestle (two-post) | Long rectangular tops | 72–120 inches | Steel, wood |
X-frame | Round & oval tops | 36–60 inches | Steel, cast iron |
Matching base type to top dimensions reduces stress on the attachment points and prevents the top from flexing or tipping over time.
The attachment method depends on two things: the base material and the top material. A solid wood top, for example, expands and contracts with humidity changes. Rigid bolts that don't allow any movement will cause the wood to crack. Flexible fasteners solve this.
Figure-8 clips (also called tabletop fasteners) are the most versatile option. They sit in a routed groove along the inside of the table apron and allow the top to move laterally while staying firmly attached. These work best with wooden apron-style bases.
Metal angle brackets work well for attaching tops to steel or iron bases. They bolt directly to the underside of the top and screw or weld to the base frame. They're rigid, strong, and ideal for non-wood tops like glass, stone, or MDF.
Wooden blocks with elongated holes offer a DIY-friendly approach that still allows wood movement. The elongated hole lets the screw shift slightly as the wood expands, preventing stress cracks.
Z-clips and desktop connectors are a modern variation on figure-8 clips. They're easy to install and provide a cleaner look without exposed hardware.
A well-made table base is the foundation of a stable, attractive dining table. Supplier quality varies significantly, and the difference shows up in details like weld strength, surface finish, and dimensional accuracy.
Several key factors distinguish a trustworthy table base supplier:
Material grade: High-quality suppliers specify the steel or aluminum grade they use. Cold-rolled steel and A380 die-cast aluminum are common benchmarks for durability.
Surface finishing: Look for powder-coated or electroplated finishes, which resist rust and scratching under daily use.
Dimensional tolerance: A base that arrives slightly warped or out of square makes proper attachment much harder. Precision manufacturing keeps the top level without shims.
OEM/ODM capability: Suppliers offering custom mold design can produce bases to your exact dimensions—critical for non-standard top sizes.
Lead time and logistics: For bulk orders, consistent lead times and reliable shipping documentation are non-negotiable.
Heshan Zhunxing Hardware Co., Ltd (www.zhunxinghardware.com) is a manufacturing-focused China table base supplier based in Heshan City, Guangdong Province. Zhunxing Hardware operates die-casting machines ranging from 100 to 800 tons and produces a broad catalog of table bases—including pedestal stands, farmhouse-style frames, and brushed metal supports—alongside chair bases and chair frames. The company offers OEM/ODM services for custom specifications.
China-based manufacturers supply a significant share of the global furniture hardware market. The advantages are clear: competitive pricing, high production volume, and access to advanced die-casting technology. But sourcing internationally requires some preparation.
Sample orders: Always request a physical sample before committing to a full order. A sample reveals surface quality, weight, weld integrity, and dimensional accuracy in ways that product photos cannot.
Specifications documentation: Provide a detailed spec sheet including top plate dimensions, mounting hole patterns, overall height, and finish requirements. Ambiguity in specs leads to costly corrections.
Quality certifications: Ask about any relevant certifications. Reputable China table base suppliers maintain consistent quality control processes and can provide production records on request.
Communication channels: Suppliers that offer direct contact with technical staff—not just a sales team—handle custom requirements more effectively. Zhunxing Hardware, for instance, provides direct WhatsApp and WeChat contact with their technical team for project support from quote through delivery.
Packaging for transit: Metal table bases are heavy and can shift in transit. Confirm that the supplier uses adequate foam padding and reinforced cartons to prevent scratches and bent welds.
Once you have the right base and fasteners, the attachment process is straightforward. Gather the following before you begin:
Drill and drill bits
Screwdriver or impact driver
Tape measure and pencil
Carpenter's square
Your chosen fasteners (figure-8 clips, angle brackets, or Z-clips)
Felt pads (optional, to protect the underside of the top)
Step 1 – Position the base on the underside of the top. Flip the table top upside down on a padded surface. Place the base in the center and use a tape measure to confirm equal distance from all four edges. Mark the base position with a pencil.
Step 2 – Align the mounting holes. Most manufactured bases include pre-drilled mounting holes in the top plate. Use a carpenter's square to confirm the base is square to the top edges before marking your drill points.
Step 3 – Pre-drill pilot holes. Drill pilot holes at each marked point to prevent splitting (for wood tops) or to seat the fastener cleanly (for MDF and composite tops). Match the pilot hole diameter to your screw gauge.
Step 4 – Attach the fasteners. For figure-8 clips or Z-clips, route a shallow groove in the apron first, then seat the clip. For angle brackets or direct-bolt bases, drive screws through the base plate into the top. Do not over-tighten—snug is sufficient.
Step 5 – Check for level and stability. Flip the table upright and check for wobble. If one leg sits slightly high, a felt pad under the foot corrects the issue without adjusting the attachment.
Step 6 – Test the connection. Apply lateral pressure from each side. A properly attached top will not shift or creak. If movement is present, add an additional fastener at the weakest point.
Attaching a table top to a dining table base is a precise process, but not a complicated one. The right fasteners, a well-manufactured base, and careful alignment produce a table that stays stable under daily use without cracking or shifting. For those sourcing components at scale, partnering with a reputable China table base supplier—one with verifiable manufacturing standards and OEM capability—makes the difference between consistent results and ongoing quality issues.
Zhunxing Hardware offers a broad range of dining table bases produced with advanced die-casting equipment and available with custom specifications. To browse their full product range or request a sample, visit www.zhunxinghardware.com or contact their team directly via email at zhunxing@vip.126.com.
TL;DR: Attaching a table top to a dining table base requires matching the base style to your top material, using the right fasteners (figure-8 clips, wooden blocks, or metal brackets), and allowing for natural wood movement. The process takes under an hour with basic tools and produces a stable, long-lasting result.
