A table is only as good as what holds it up. The surface gets all the attention—the grain, the color, the finish—but a poorly built base will wobble, sag, or fail entirely. Getting the base right from the start saves time, money, and frustration down the road.
This guide walks through everything you need to know: how a table base works, which styles suit different spaces, and a step-by-step process for building one yourself. Whether you're outfitting a dining room or furnishing a commercial space, the fundamentals are the same.
A strong table base does three things well: it distributes weight evenly, resists lateral movement, and connects securely to the tabletop above it. Fail at any one of these, and the table becomes a liability rather than a fixture.
Material choice drives most of these outcomes. Metal bases—particularly steel and aluminum—offer the best combination of strength and design flexibility. Cast iron bases are extremely durable and suit heavy tabletops like marble or thick glass. Wooden bases work well for residential settings but require careful joinery to stay rigid over time.
The connection between base and top also matters. A base that's simply rested under a tabletop will shift. One that's properly fastened—with brackets, bolts, or adhesive clips depending on the top material—will stay put for years.
Chrome dining table bases occupy a specific niche: they're built for dining height (typically 28 to 30 inches), engineered to hold heavier loads, and finished for visual appeal as much as function.
Chrome as a surface finish is electroplated onto steel, giving the base corrosion resistance and a reflective, modern look. The underlying structure is usually tubular steel or cast aluminum—both of which handle the load demands of a dining table without bulk.
Here's a quick comparison of common dining table base materials to help match your project to the right option:
Material | Weight Capacity | Best For | Typical Finish |
|---|---|---|---|
Chrome-plated steel | High | Modern dining tables | Polished chrome |
Cast iron | Very high | Marble or stone tops | Powder coated |
Aluminum | Medium-high | Lightweight or glass tops | Brushed or anodized |
Solid wood | Medium | Rustic or farmhouse styles | Stained or painted |
Stainless steel | High | Commercial or outdoor use | Brushed or polished |
Chrome bases pair naturally with glass tops, since both materials share a clean, reflective quality. They also work well with engineered stone and solid wood, depending on leg profile and finish. Pedestal-style chrome bases, in particular, give dining tables a floating appearance that suits smaller rooms—there are no corner legs to navigate around.
When selecting a chrome dining table base, check the base plate dimensions against your tabletop. A base plate that's too small relative to the top creates instability. As a general rule, the base should span at least 60% of the tabletop's shortest dimension.
Style affects more than aesthetics. Each base configuration has structural trade-offs that determine where and how it performs best.

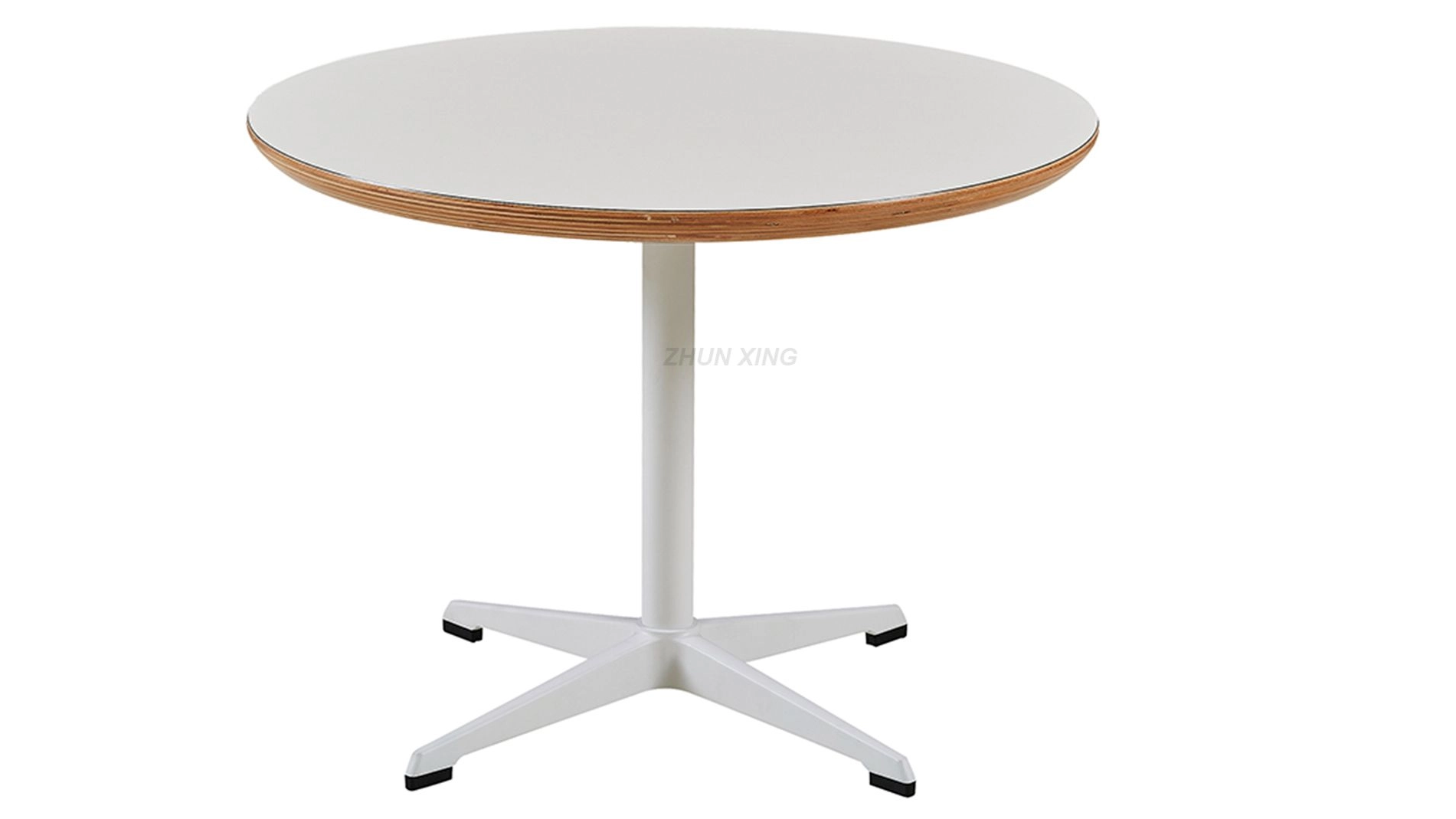

A pedestal base uses a single central column—round, square, or sculpted—rising from a weighted foot. Pedestal bases maximize legroom and suit round or oval tops. They're a natural fit for dining tables in compact spaces, café settings, and any application where seating flexibility matters. The drawback: they're less stable under off-center loads, so they work best with tops that distribute weight evenly.
Trestle bases feature two vertical supports connected by a horizontal stretcher running along the table's length. This design distributes load across a wider area, making it suitable for long rectangular tops and heavy-duty use. Farmhouse and conference tables commonly use this configuration. The open ends allow comfortable seating at the heads of the table.
Four legs—one at each corner—offer the most straightforward stability. This style suits nearly every table size and top material. The legs can be tapered, straight, hairpin, or box-style, giving designers wide creative latitude. The main limitation: fixed corner legs reduce seating flexibility compared to pedestal or trestle designs.
In short, pedestal prioritizes legroom, trestle balances heavy loads, and four-leg ensures all-around stability—each table base style serves a distinct functional need.
Building a table base from scratch is a manageable project. The steps below apply primarily to a metal or steel base, which is the most common choice for durability and longevity.
What you'll need:
Steel tubing or pre-cut metal base components
Welder or metal brackets and bolts
Angle grinder and cutting disc
Measuring tape and square
Drill with metal bits
Leveling tool
Primer and paint or powder coat finish
Mounting hardware (bolts, T-nuts, or table clips)
Step 1: Choose your base style and dimensions
Decide on pedestal, trestle, or four-leg. Measure the tabletop dimensions, then determine the appropriate base footprint. For dining height, aim for a finished height of 28 to 30 inches from floor to the underside of the top.
Step 2: Cut your steel components
Using a metal cutting disc, cut your tubing to the required lengths. A four-leg base will need four vertical legs and a top mounting plate. A pedestal base needs a column, a base plate (the foot), and a top plate.
Step 3: Weld or bolt the frame together
If you're welding, tack each joint first and check for square before running full welds. If you're using mechanical fasteners instead, use heavy-duty bolts and locking nuts at every joint. Check for level at each stage.
Step 4: Grind and finish the welds
Smooth all weld points with an angle grinder. This step matters both structurally and aesthetically—rough welds create stress concentration points over time.
Step 5: Apply primer and finish coat
Apply a rust-inhibiting primer, then finish with powder coat, paint, or a chrome plating service depending on your intended look. Powder coat is the most durable DIY-accessible option.
Step 6: Mount the base to the tabletop
Flip the tabletop upside down on a padded surface. Position the base, then mark and drill mounting holes. For wood tops, use bolt-and-T-nut combinations. For glass tops, use adhesive table clips or silicone bonding—never drill directly into glass. Tighten all fasteners evenly and check for wobble before flipping the table upright.
A well-built table base determines how long your table lasts and how confidently it performs. The material, style, and construction method all feed into the final result—and small decisions early in the process make a significant difference.
For those sourcing ready-made metal table bases—whether chrome pedestal bases for dining tables or steel trestle bases for commercial use—ZhunXing Hardware (www.zhunxinghardware.com) manufactures a full range of table bases and chair bases built to furniture industry standards. The product line covers pedestal, farmhouse, and custom configurations, with OEM/ODM options for projects that require specific dimensions or finishes.
The fundamentals covered in this guide apply whether you're building from raw steel or customizing a pre-made base. Start with stable geometry, use appropriate fasteners, and secure every connection before the table sees any load.
Quick answer: Building a table base requires selecting the right material (metal, wood, or cast iron), choosing a style that fits your space (pedestal, trestle, or four-leg), and securing the base firmly to your tabletop using the appropriate hardware. The process typically takes a few hours and basic tools.
