Furniture making is a craft that rewards precision. A well-built chair frame is the backbone of any seating piece—get it right, and the chair will last decades. Get it wrong, and even the finest upholstery won't save it.
This guide walks through the essential parts of a chair, the specific components that make up an office chair, and a practical breakdown of chair frame construction. A comparison table is also included to help you evaluate material options at a glance. By the end, you'll have a clear picture of what goes into building a chair frame that's structurally sound and built to last.
Every chair—from a simple wooden dining seat to an elaborate armchair—shares a common set of structural components. Understanding these parts is the starting point for any frame-building project.
The seat frame forms the horizontal platform on which the cushion or seat board rests. Typically constructed from solid hardwood or plywood, the seat frame must support significant downward force without flexing or warping over time.
Chair legs bear the full load of the seated person. Most chair designs use four legs, though three-legged stools and pedestal bases are common alternatives. Leg material choices—wood, metal, or molded plastic—directly affect both durability and aesthetic.
Rails connect the legs horizontally, typically running along the front, back, and sides of the seat frame. Front and side rails also provide mounting points for the seat board. The strength of these rail-to-leg joints largely determines the chair's overall rigidity.
Stretchers are horizontal braces that connect the lower portions of the legs. They serve to prevent leg splaying under load and add a significant amount of lateral stability. Not all chair designs include stretchers—modern minimalist chairs often omit them—but their presence meaningfully strengthens the frame.
The chair back is supported by two vertical back posts that extend upward from the rear legs. Horizontal back rails span between these posts, providing structure for the back panel or upholstered section. The angle of the back posts determines the recline and ergonomic comfort of the finished chair.
On arm chairs, armrests are mounted to the back posts and front legs. They must be anchored securely to handle lateral pushing forces, which are often stronger than people expect during everyday use.
Office chairs part follow a different structural logic than traditional wooden chairs. Rather than relying on rigid leg-and-rail construction, office chairs are built around a central mechanical column with a radial base.
Component | Function | Common Material |
|---|---|---|
Five-star base | Distributes weight across five radial arms | Nylon or aluminum |
Casters | Allow rolling movement | Plastic or rubber-coated |
Gas lift cylinder | Adjusts seat height pneumatically | Steel |
Seat plate (mechanism) | Connects seat to cylinder; enables tilt | Steel |
Seat pan | Supports cushioning and upholstery | Molded plastic or plywood |
Backrest frame | Supports lumbar and upper back | Plastic, aluminum, or mesh |
Armrest brackets | Mount armrests to seat or back frame | Plastic or steel |

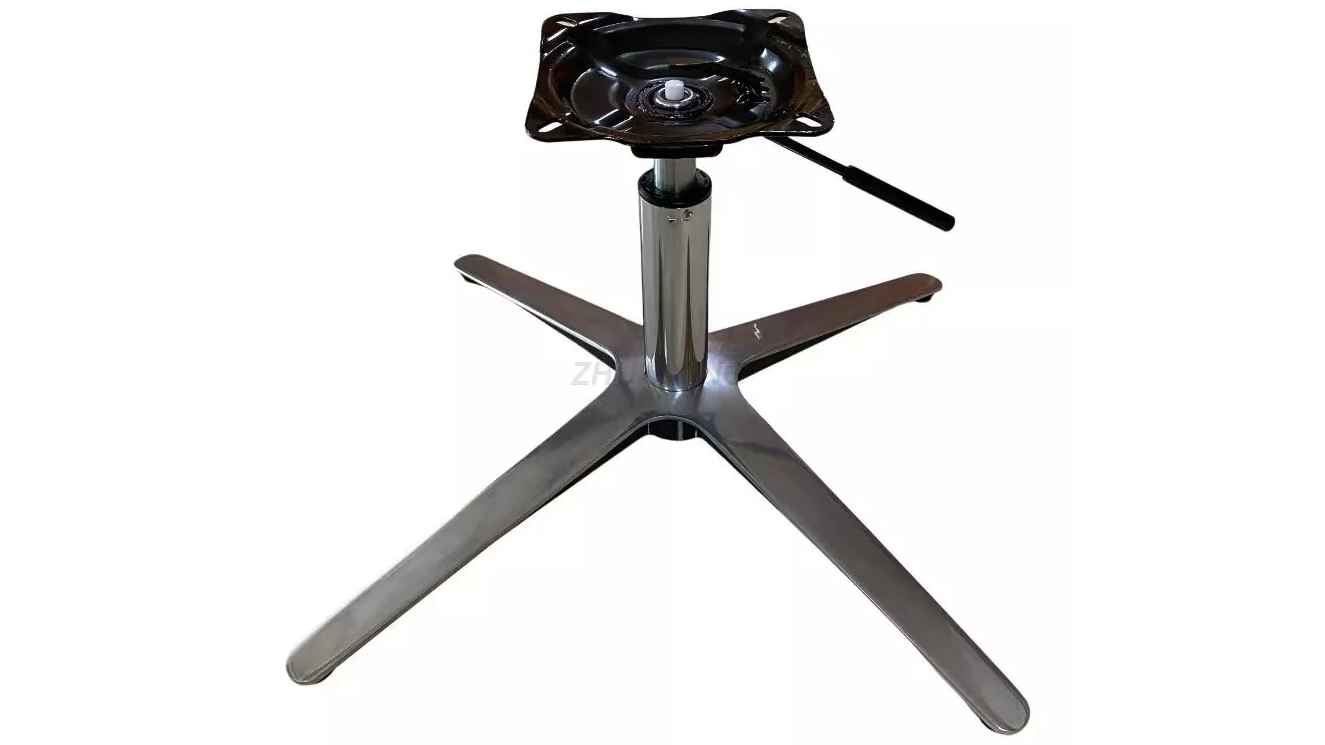

The gas lift cylinder is the heart of the office chair's adjustability. It uses compressed nitrogen to allow smooth height changes with minimal effort. Seat mechanisms—also called tilt mechanisms or synchro mechanisms—are bolted to the underside of the seat pan and connect directly to the top of the gas cylinder.
Unlike traditional chairs, the structural integrity of an office chair depends heavily on the quality of these mechanical components rather than joinery craftsmanship. A weak five-star base or a low-quality gas cylinder will compromise the chair regardless of how well the seat pan or backrest is made.
With a solid understanding of chair parts, the actual frame-building process becomes much more approachable. The choices made at this stage—materials, joinery methods, and assembly sequence—determine how long the chair will last and how well it will perform.
Material selection affects weight, cost, durability, and the tools required to work with it.
Hardwoods such as oak, ash, and beech are traditional choices for wooden chair frames. They machine cleanly, accept joinery well, and have strong grain structures that resist splitting under stress. Softwoods like pine are more affordable but compress and dent more easily over time.
Steel tubing is the standard for commercial office chair frames and metal-framed furniture. It offers a high strength-to-weight ratio and can be welded, bent, or bolted into almost any configuration. Powder coating provides corrosion resistance.
Plywood is widely used for seat pans and back panels due to its dimensional stability and resistance to warping. Baltic birch plywood is particularly valued for furniture applications because of its void-free core.
The joints used to connect chair parts are critical stress points—they're where most chairs eventually fail.
Mortise and tenon joints are the traditional standard for chair construction. A tenon (a protruding tongue) fits into a corresponding mortise (a cavity) cut into the adjoining piece. When glued with PVA or hide glue, this joint handles both compression and racking forces effectively.
Dowel joints are faster to produce and work well for rail-to-leg connections when properly sized and aligned.
Pocket screw joinery offers a quick assembly method suited to painted or upholstered pieces where the joinery won't be visible.
Chair frames are best assembled in stages. Rushing the full assembly before sub-assemblies have cured is a common source of alignment problems.
Build the back sub-assembly first — join back posts and back rails, check for square, and allow glue to cure fully.
Assemble the seat frame — join front and side rails to front legs.
Connect front and back sub-assemblies — attach the rear legs to the seat frame using rear rails and stretchers.
Check for twist and square — place the assembled frame on a flat surface and confirm all four legs make contact evenly before the glue sets.
Add armrests last — once the main frame has cured, armrests can be fitted and fastened.
A durable chair frame comes down to three things: understanding the structural role of each component, selecting materials appropriate for the intended use, and executing joinery with care and precision. Whether the goal is a classic wooden dining chair or a custom office seat, the principles remain consistent.
For builders sourcing hardware components—hinges, brackets, casters, and frame connectors—quality hardware makes a measurable difference in the finished product. Zhunxing Hardware (www.zhunxinghardware.com) supplies a range of furniture hardware suited to chair frame construction and office seating applications.
In summary, the three structural areas covered here—general chair parts, office chair components, and frame construction techniques—each represent a distinct layer of knowledge. Mastering all three gives you the foundation to design, build, or repair virtually any chair with confidence.
Hard maple, white oak, and ash are widely regarded as the best choices for chair frames. All three offer strong, tight grain structures that resist the racking forces chairs experience in daily use. Beech is a reliable and more affordable alternative commonly used in commercial furniture production.
Mortise and tenon joints provide the highest level of strength for wooden chair frames and are the preferred method for pieces expected to handle heavy daily use. Dowel joints are a practical alternative for lighter-use chairs. Pocket screws alone are generally insufficient for structural chair joints unless reinforced with corner blocks.
Yes. Most joint failures can be repaired by carefully disassembling the joint, removing old glue with a chisel or hot water, and re-gluing with fresh PVA or hide glue. Dowels can be added to reinforce previously weak joints. Complete re-gluing of an entire chair frame—known as a "knock-down and reglue"—is a common and effective repair.
A standard tilt mechanism reclines the seat and backrest together as a single unit. A synchro mechanism moves the backrest at a faster rate than the seat—typically a 2:1 ratio—which keeps the user's thighs more level during recline and reduces pressure behind the knees. Synchro mechanisms are generally found in mid-range to premium office chairs.
Significantly. Aluminum bases are stronger and more resistant to cracking than nylon bases, particularly under higher user weights or in heavy-use environments. Nylon bases are lighter and less expensive, making them appropriate for standard office use. For heavy-duty applications, an aluminum base is the more reliable choice.
TL;DR: Building a chair frame requires understanding its core components—legs, rails, stretchers, and back posts—as well as how they connect to create a stable, functional structure. Office chairs add mechanical components like a base, casters, and gas lift cylinder. Selecting the right materials and joinery methods is key to a durable result.
